What are the different RTSP steams for my WWVDS cameras?

This article discusses the RTSP streams for your WWVDS cameras.

Product applicability

The following products are discussed in this article:

  • WWVDS Cameras:
    • GC-THO-156
    • GC-THO-D2530

Please see the URLs below for each video stream channel.

Replace the following with your credentials:

  • <username>
  • <password>
  • <ipaddress>

Unicast RTSP Channel 1 (Optical)

rtsp://<username>:<password>@<ipaddress>:554/snl/live/1/1

Unicast RTSP Channel 2 (Thermal)

rtsp://<username>:<password>@<ipaddress>:554/snl/live/2/1

How to Set Up Multicast Streams


  1. Configure desired IP configurations on both channels.

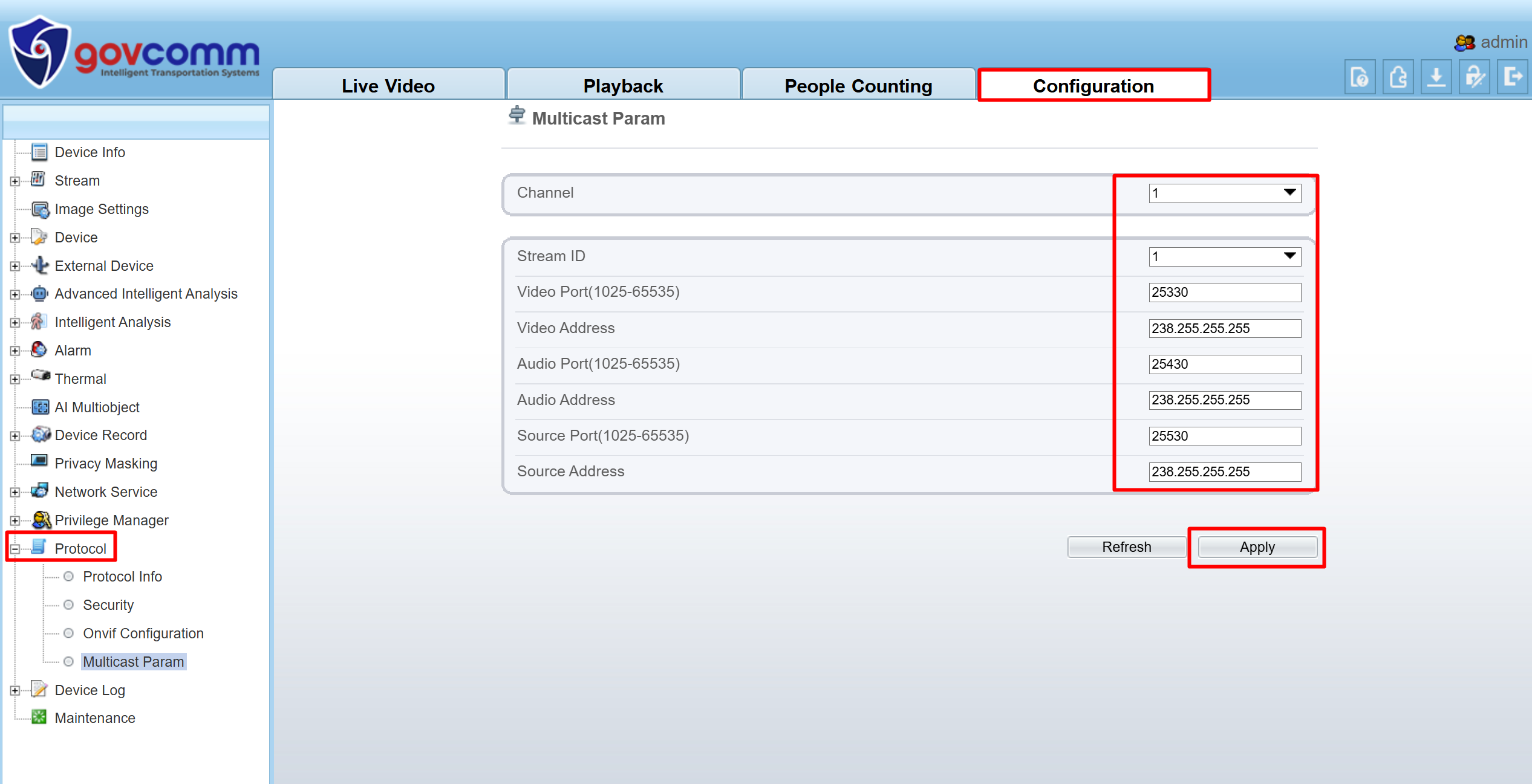

Channel 1

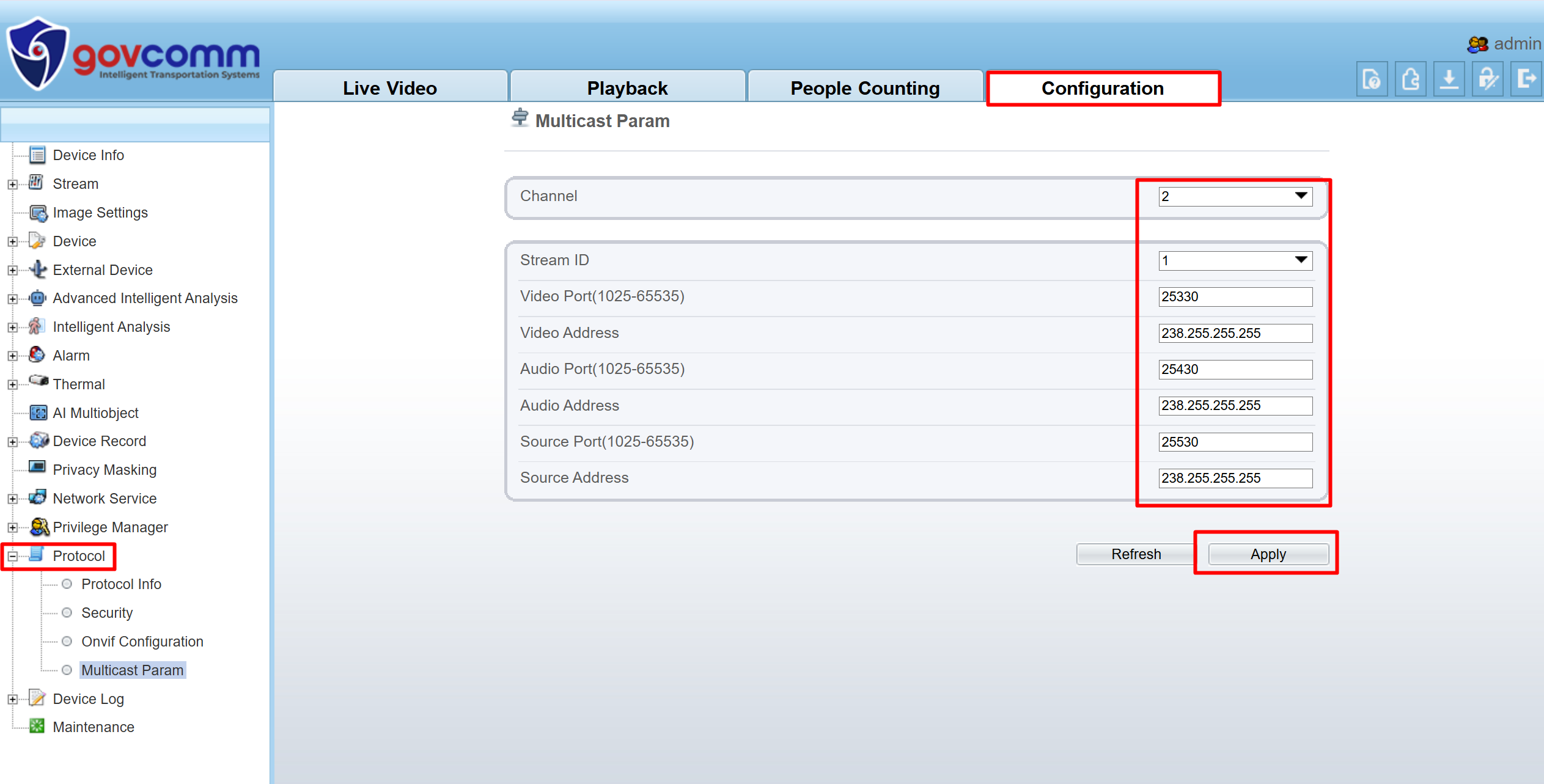

Channel 2

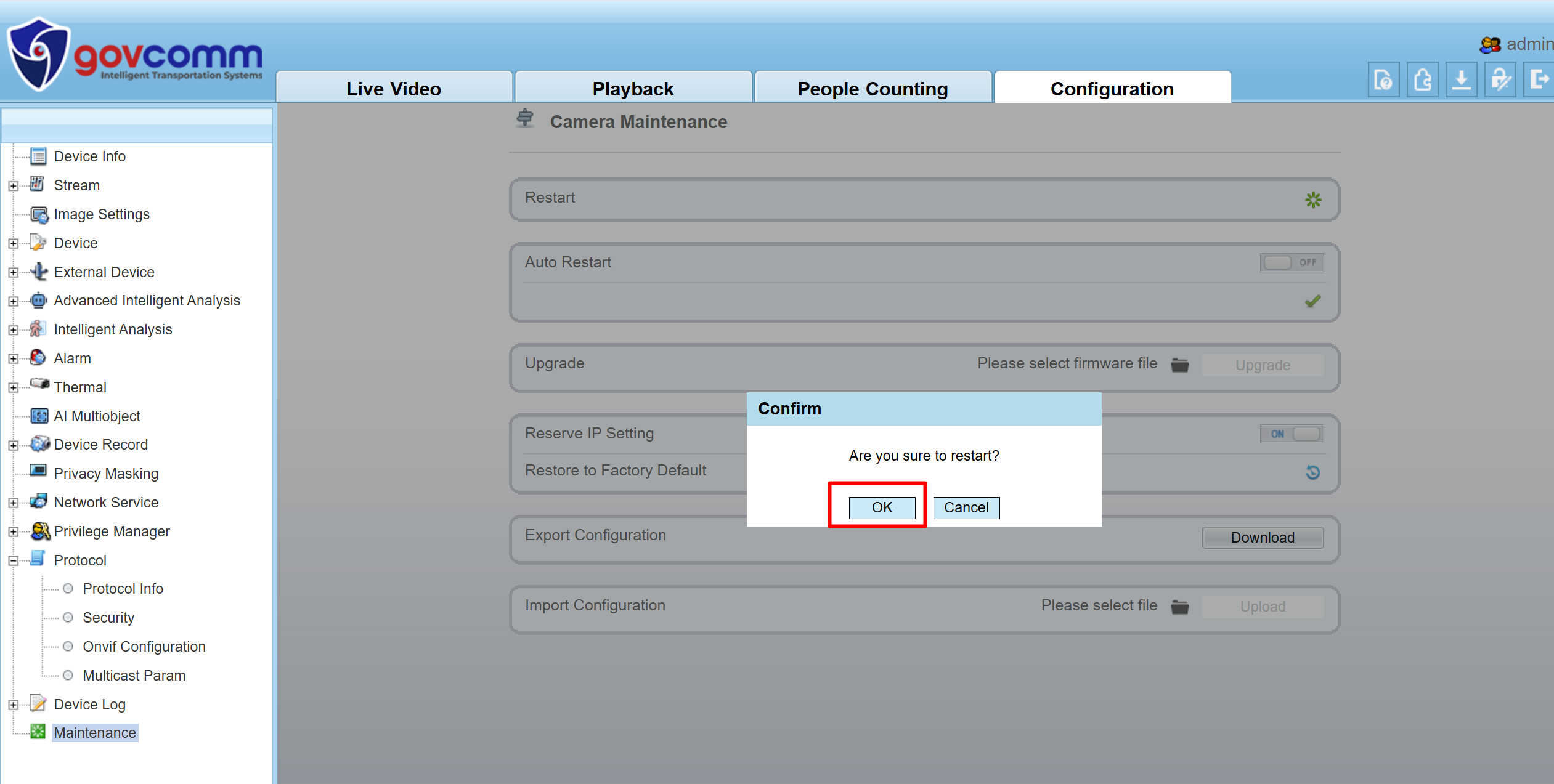

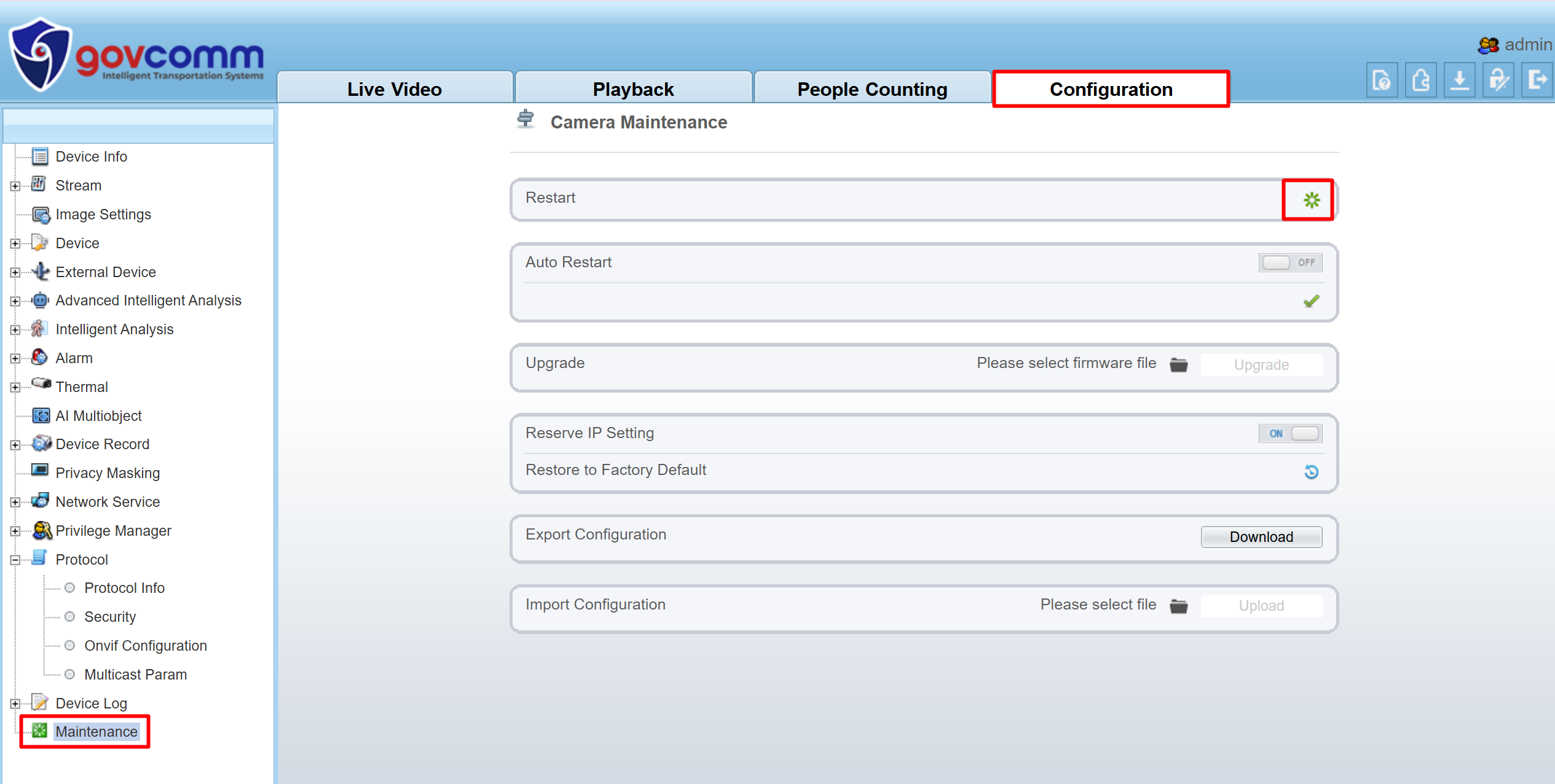

Once changes have been applied, ensure you have restarted the camera.

Multicast RTSP Channel 1 (Optical)

rtsp://<user>:<password>@<IPaddress>/snl/multicastlive/1/1

Multicast RTSP Channel 2 (Thermal)

rtsp://<user>:<password>@<IPaddress>/snl/multicastlive/2/1

Multicast Alternative Stream (Optical)

rtsp://<user>:<password>@<IPaddress>:554/snl/multicastlive/1/2?multicast=true

Multicast Alternative Stream (Thermal)

rtsp://<user>:<password>@<IPaddress>:554/snl/multicastlive/2/2?multicast=true
